The authorities model with fast & accurate alcohol measurement (official model of the Austrian police)!

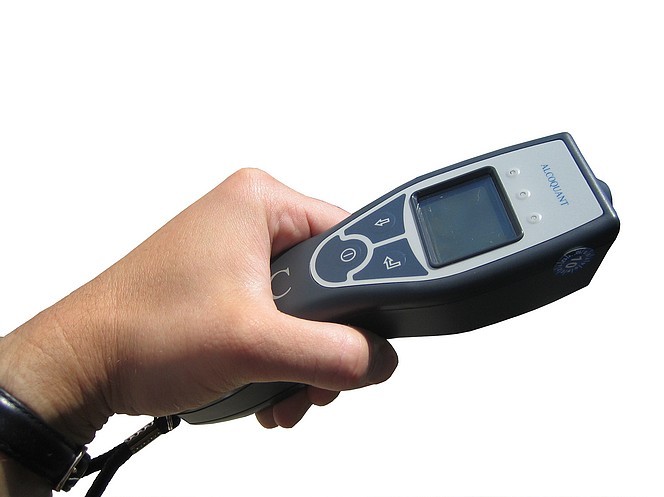

The Envitec AlcoQuant 6020 plus is characterized by high operational reliability and ease of use. The Envitec AlcoQuant® 6020 plus is more accurate, more compact and easier to use than many of products on the market. In the new Plus version, the display has been improved for outdoor use, and is now compliant to DIN EN 15964.

The Envitec AlcoQuant® 6020 pus is equipped with an electrochemical sensor (E-100), which responds specifically to alcohol. Other factors such as essential oils (eg eucalyptus, peppermint) or smell of tobacco play virtually no role. In order to eliminate measurement errors, checked a microcontroller including evaluation software running all internal functions. The system allows short measuring intervals and so much more and faster checks than ever before. The unit for the BAC level in parts per thousand ‰ or the AAK value in mg / L can be set free on the menu!

The device is equipped with a data memory (for 99,999 measurements) and a serial data interface. The data can be (optionally) transmitted to a PC with the software "Data Manager Alco 6020" incl. Data cable.
Envitec AlcoQuant® can be used in both the public and private sectors: alcohol testing procedures of municipalities, executive, hospitals or prisons or addiction clinics can be optimally supported with the new device. Even freight forwarders, public transport, transport services, bus companies, automobile clubs, security services, medical missions, or the catering sector will benefit from the ease of use and precise results. PZN: 1155070

The advantages and characteristics of the Envitec AlcoQuant 6020 plus:

- Electrochemical sensor (alcohol sensor E100)
- New super-sharp display
- High level of acceptance among the subjects, as the device is also used in the police
- Sampling system enables short measuring intervals and the shortest waiting times between measurements
   Check AlcoQuant devices and monitor during sampling, the amount of air breathed out
   and detect any attempt at deception
- Long-term stability allows calibration intervals of six months
- Using the latest components
- Special micro-controller including evaluation software continuously checks all internal functions
- Three buttons for intuitive operation of the menu
- Use of the S-type mouthpiece or mouthpieces of the D-type's the company Dräger.
- All indications on device status or error messages appear in plain text on the illuminated display
- Total user interface is self-explanatory
- Current status is traceable at any time
- Data logger - the last 9,999 results are stored
- Data storage with PC interface for optimum readability of the collected test
- Splashing water and dust according to IP 54
- Mechanical protection to IK 03
- Meets requirements according to EU standard EN 15964 (
- Optional NiMH battery
- incl. mobile wireless printer E-Print 202

Easy operation, self-explanatory

The handling of the Envitec AlcoQuant® 6020 plus is easy. Three control buttons provide an intuitive operation of the menu. All ads as device status, readings or error messages appear in plain text on the illuminated display. The entire user interface is self-explanatory and is limited to what is necessary really. A data storage with PC interface and a Bluetooth option for optimal readability and easy care maintenance of the collected test.

Absolute reliability in every measurement situation

Through cutting-edge sensor technology for maximum measurement and device security is given. Robust and ergonomic housing design ensure safe handling in any situation. The device performs a self-test, the injection process monitored and detected Einblasfehler. With the equipment up to 2,000 measurements can be carried out without changing the battery.


Technical specifications:

- Size: 190x 61x38mm (HxWxD)
- Weight: 275g
- Power supply: 4 pcs AA batteries for approximately 2,000 measurements
- Operating temperature: 5 to 50 ° C


Delivery content:

- Meter AlcoQuant 6020 plus (Envitec-Art.Nr 1001779 / EAN: 4260042952040)
- 25 mouthpieces (S.tYP) + 25 additional Mouthpieces
- 4 batteries
- carrying case
- Printer E-202 print
- Lithium battery for printer
- Charger for printer
- Car Charger for printer
- Data cable RS232C for printer
- 1 role paper
- Operation manual (CD) for printer

Data-Sheet:

   Datasheet Breathalyzer Envitec AlcoQuant 6020 (PDF-file)
   User manual to Envitec AlcoQuant 6020 (PDF-file)


NOTE:  The manufacturer and the sellers will not take any legal responsibility for the test results.
