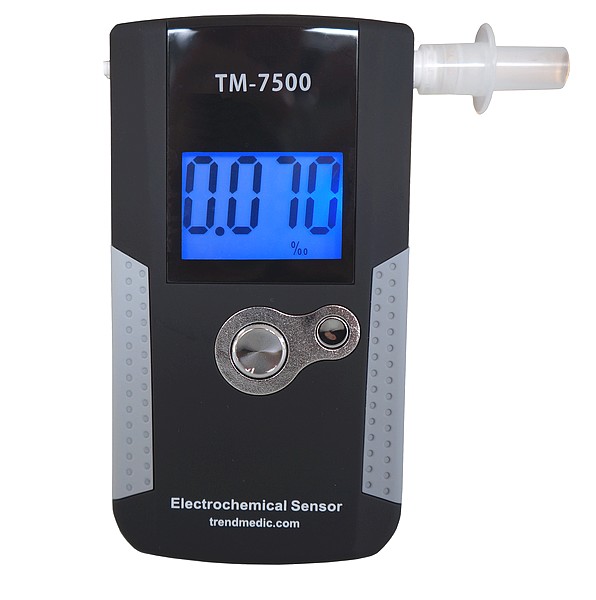

TM-7500 - Accuracy-Focused Engineering

The TM-7500 is an ideal choice for law enforcement, health professionals or anyone who requires the most dependable BAC results. It features police-grade Fuel Cell Sensor Technology with enhanced linear accuracy, and convenient one-button operation for fast and accurate BAC results. Simply press the power button and begin testing in just seconds. The TM-7500 has been tested by, and meets the requirements of, the DOT/NHTSA for a personal breath alcohol screening device.



Core Features:

- Electrochemically 2/4 "(11mm) larger Fuel Cell Sensor with pneumatic feedback
- One-button operation for measurement
- Button to retrieve the last five readings
- Counter function (measured value counter)
- Quality rubberized surface + ultra bright display!
- High-quality hard Case + Belt pouch

Technical specifications:

Scope: commercial & private area
Display: 0.000 to 2.000 ‰ BAC
Display accuracy (accuracy of the measurement screen): 0.001
Display: 1.8 "LCD with backlight (blue)
Display: Audible and visual warning of alcohol detection
Accuracy: Accuracy ± 0.025 mg / L corresponds to approximately +/- 0.05 ‰ at 1.0 per thousand!
Warm-up time: max. 15 seconds
Recovery time <60 seconds
Measuring Time: 5 seconds
Sensor: electrochemical 2/4 "(11mm) larger Fuel Cell Sensor
Weight: 150g with battery
Size (W / L / H): 67 x 124 x 28 mm
Material: ABS plastic, black
Certifications: CE certification (TÜV SÜD Product Service GmbH), US FDA 510 (k), US DOT certification
Menu: User menus in English
Power supply: 9 V alkaline - battery, low battery indicator, auto power off
Other: data memory: 5 last values, totalizer for tests with calibration alarm
Indication as to whether a sufficient breath sample was submitted
Calibration every 500 tests or 12 months, English user guide
Product Warranty: 2 years / Sensor-Warranty: 1 year

Package Contents:

Breathalyzer TM-7500
9V alkaline - battery ()
5 Mouthpieces
Operating instructions (English)
Quick Start Guide (German)
Belt pouch

Datasheet:

Instructions (german) for Breathalyzer TM-7500

  Instructions (englisch) for Breathalyzer TM-7500
