Viatom DuoEK S ECG monitor

The DuoEK S from Viatom is a portable ECG device designed for self-monitoring in people with heart disease or at increased risk. It can be used with or without a smartphone (AI analysis is only possible via app), whereby the measurement results can be saved in the ViHealth app and shared with a doctor if required.

The AI ECG analysis system (via the ViHealth app) is able to identify up to 17 types of ECG events:

Sinus Rhythm, Ectopic Rhythm, Sinus Tachycardia, Sinus Bradycardia, PAC(Premature Supraventricular Contraction), PVC (Premature Ventricular Contraction), PAC Pair, PVC Pair, PAC Bigeminy, PVC Bigeminy, PAC Trigeminy, PVC Trigeminy, Supraventricular, Tachycardia, Ventricular Tachycardia, Atrial Flutter, Atrial Fibrillation, HRV

Product features:

- Uses electrocardiography (ECG) to measure heart activity
- Has 2 channels and 2 electrodes
- Detect potential heart problems through AI analysis via app
- Can perform up to 10 ECG measurements without a smartphone

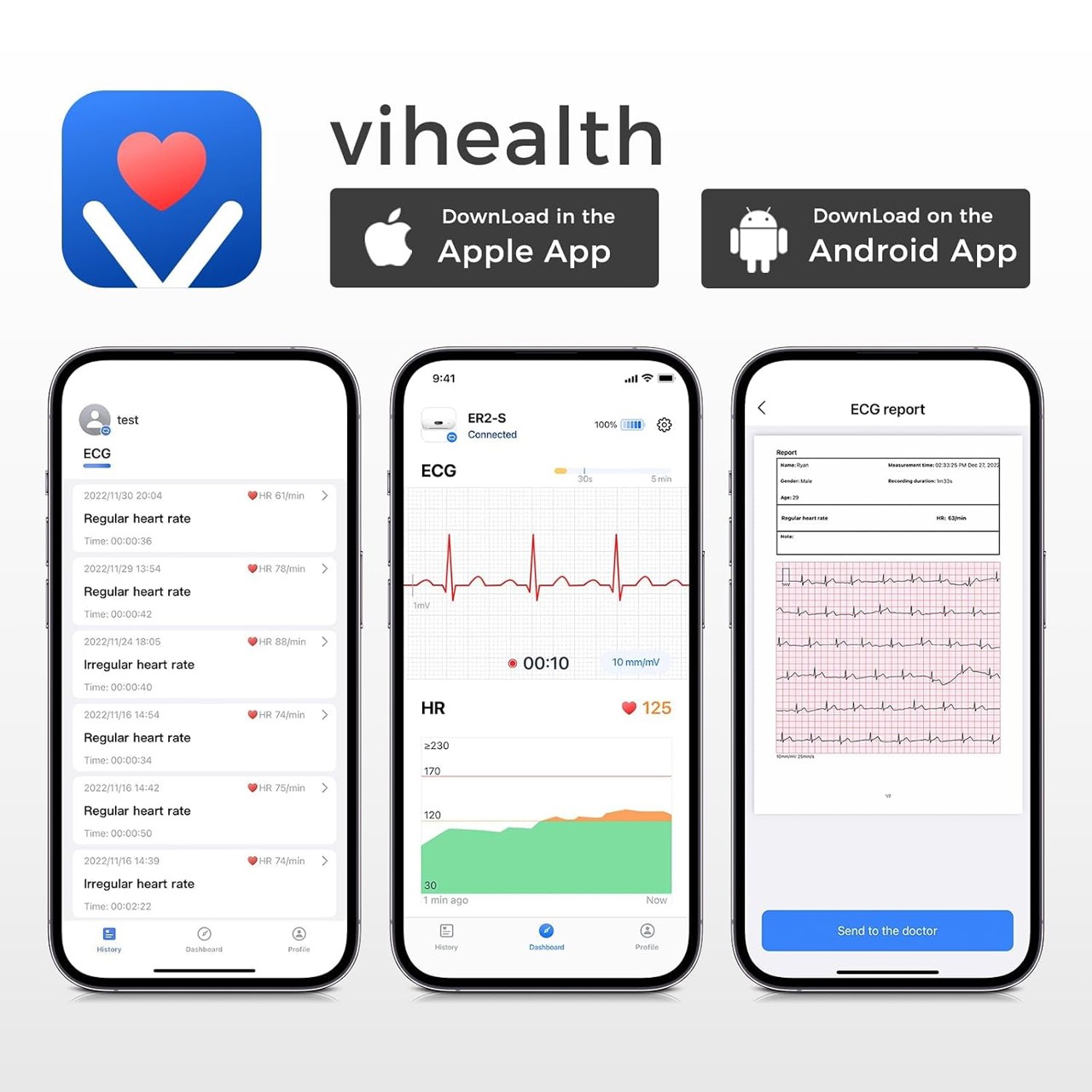

- Results are saved in the ViHealth app
- Easy handling and flexibility of use
- Possibility to share data with doctors

Technical features:

Heart rate range: 30 to 250 BPM
ECG length: 30 seconds to 5 minutes
In-app memory: Unlimited

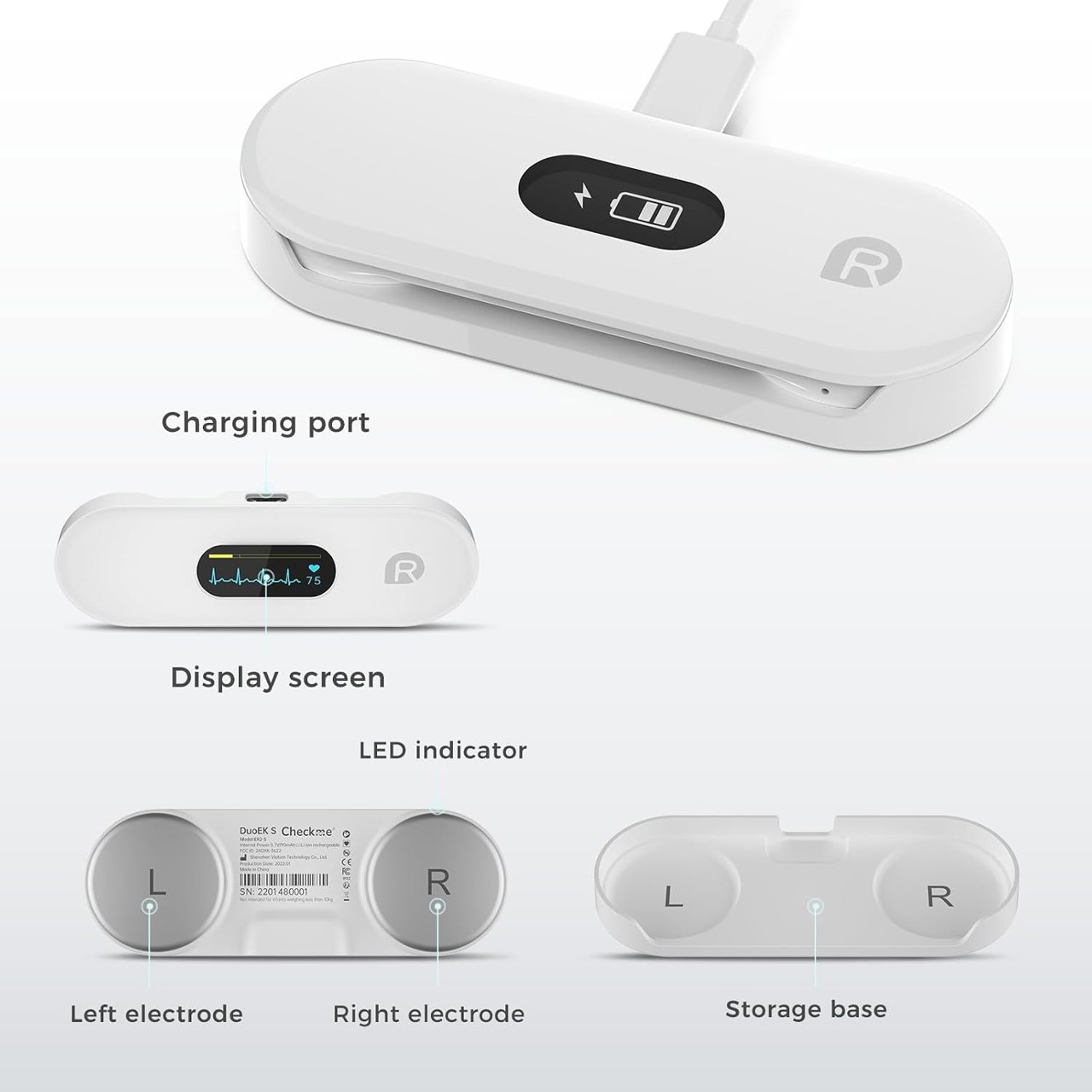

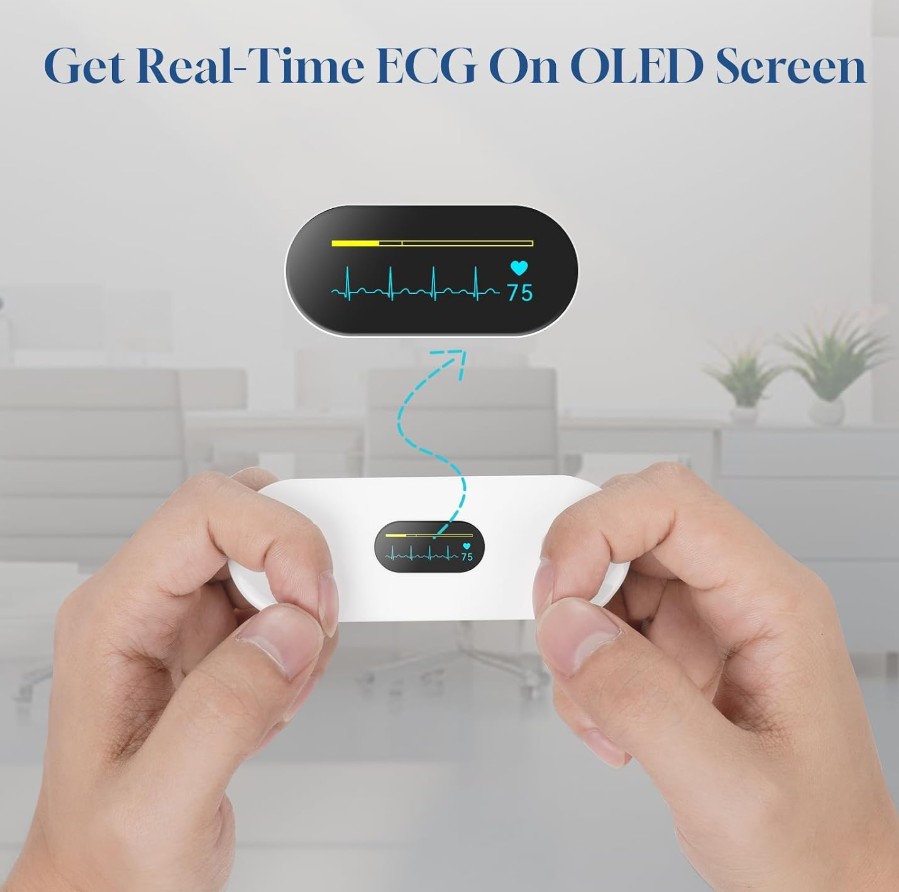

Display: 0.96 inch OLED screen
Wireless connectivity: Bluetooth 4.0
App for iOS: iOS 9.0 or higher, iPhone 4s/iPad 3 or higher
App for Android: Android 5.0 or higher, with Bluetooth 4.0 BLE
Size: 92×32×8.2 mm (main device)
Weight: 26.8 g (main device)
Charging time: 2 -3 hours
Connection: USB-C connection
Battery life: >500 tests
Device's own memory: 10 sessions if the ECG is less than 1 minute long; 4 sessions if the ECG is 5 minutes long


Scope of delivery:
- 1 DuoEK S ECG monitor
- Free use of the ViHealth app
- Operating instructions

Note: The results of the ECG report are for reference only in the daily monitoring of heart health, they cannot replace the medical diagnosis results and cannot be used for clinical diagnosis and treatment.
